Preliminaries

This section covers steps that you'll only need to do once to set yourself up.

First, let's install the atile command globally.

npm install -g @dasl/tiles

If that runs without error, you can check that you have it:

$ atile
Usage: atile [options] [command]

Manipulating tiles on the AT protocol

Options:
  -V, --version                  output the version number
  -h, --help                     display help for command

Commands:
  login <handle> <appPassword>   log a handle into AT so that you can post
  logout <handle>                log a specific handle out
  default-user <handle>          set the default handle to use when unspecified
  list-users                     list all logged in handles you have
  publish [options] <dir>        publish a tile to the Atmosphere
  delete [options] <dirOrATURL>  delete a tile from the Atmosphere
  help [command]                 display help for command

If you see some output similar to the above, then you're good!

The next step is that you need to create an app password. Using Bluesky, you can do it from the relevant settings page.

Using your app password, you can now login for the corresponding handle:

atile login robin.berjon.com hunter2

That's it! You're all set up to be publishing tiles.

Hello World!

Let's start by making a very very boring tile that has zero frills and just says "Hello World!" First, you want a directory for the tile's content to live in:

mkdir hello-tile

Then let's just create an HTML document to say "hello world" with. A tile must have a root path (the path of which is /). The atile command just looks for the classic index.html to use for that, so we'll use that name.

echo '<p>Hello World!</p>' > hello-tile/index.html

The other resource that's required for a tile is a manifest. Because producing a correct tile manifest can be a little bit of work, atile generates almost all of it for you. However, you still need a name for your tile (which is like an app name — tile manifestes are derived from Web App Manifests). There are other things that you can put in a manifest, but let's just start with the minimum.

echo '{"name":"The Hello Tile"}' > hello-tile/manifest.json

And that's all the coding we'll need — one line in each of two files — to get something up there. We can now publish it:

atile publish -s hello-tile/

The command is simple: it publishes the path to the specified directory. The -s option is used to that atile will keep a mapping from that directory to the specific identifier used for that tile. This means that if you run the command again, it will update the tile on AT instead of creating a new one. (If you don't want to rely on the directory path remaining stable, you can use the -t paramters to specify the TID.)

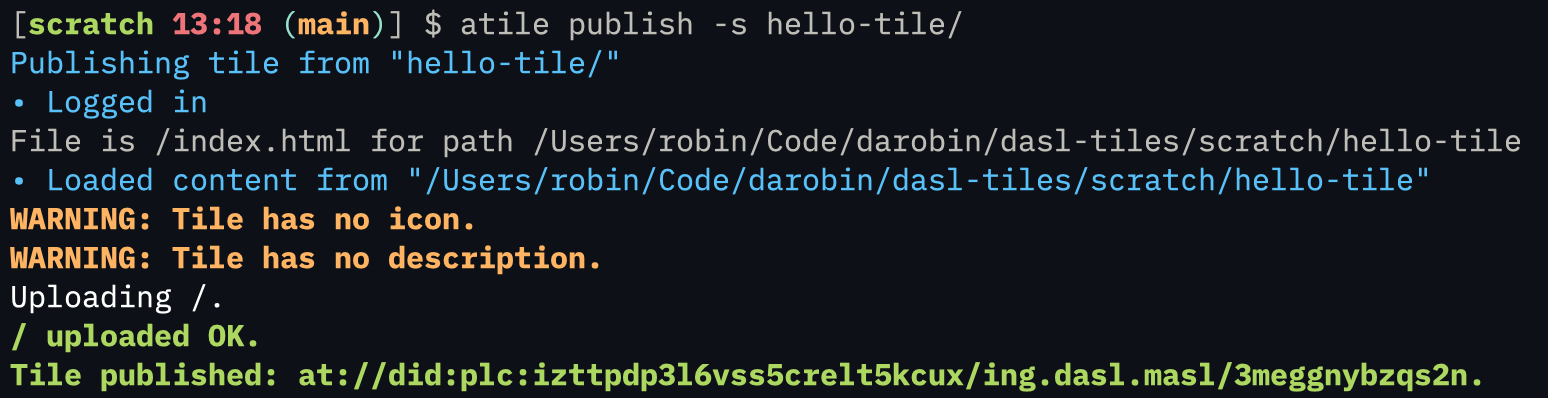

The output should look like the following:

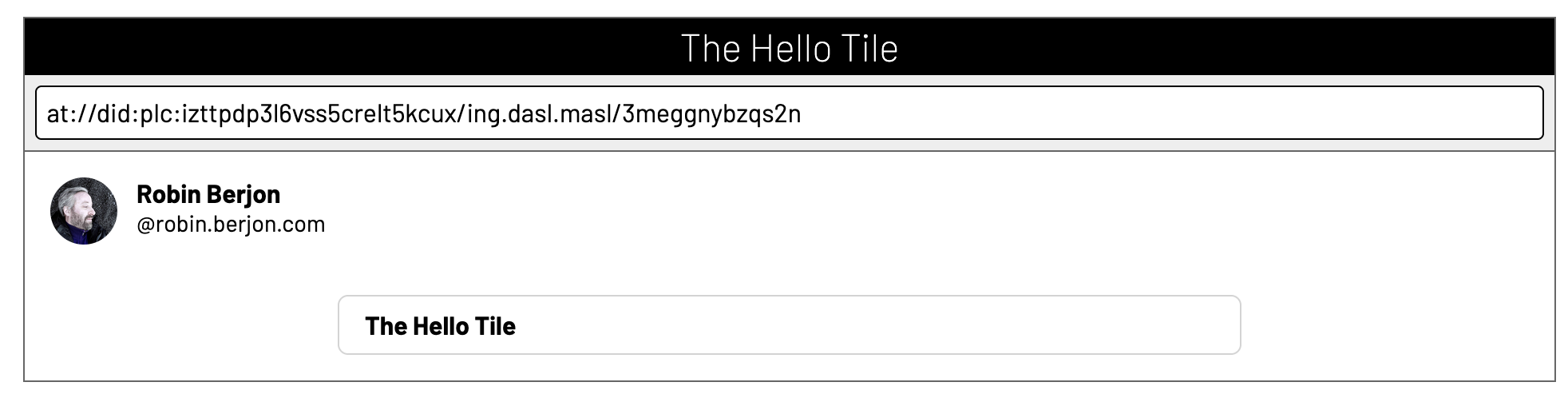

If you know go to open the tile in the tile browser, you will see something like this (except with your avatar):

It's important to understand that tiles can be rendered in multiple ways. Because they have metadata that's published on AT, you can simply use that metadata to render a card (just like link cards), which is useful if you don't want potentially hundreds of active tiles executing at the same time as they appear in a feed. Because we've given very limited metadata, there really isn't much to go on for the card, so you only get its name. If you click on the card, you activate the tile, which triggers the most important rendering move: live tiles. It looks like this:

This tile isn't doing much but it's a full-fledged web app that's safely executing in a secluded context. All you need to do is to add CSS, JS, etc. and republish!

Refinements

First, let's give it an icon. Because I'm lazy, I'll just copy the Web Tiles icon into icon.png at the root of the tile. (It doesn't have to be there or to be called that.) Similarly, I'll use this random picture saved to /banner.jpg (also arbitrary) as the banner for the card.

We can then update manifest.json to the following:

{
  "name": "The Hello Tile",
  "description": "An extremely simple tile that just demonstrates how easy it is to get something published and going.",
  "icons": [{ "src": "/icon.png" }],
  "screenshots": [{ "src": "/banner.jpg" }]
}

Note that both icons and screenshots are plural and take an array. This is for compatibility with Web App Manifests (and I expect that tiles implementations will make use of the ability to specify alternatives). Also note that the paths are prefixed with /. That's because all paths in the manifest must be absolute with respect to the root of the tile. When atile generates the complete manifest, it creates a resources entry that maps /icon.png and other files to the CID (Content IDentifier) for that file along with important metadata like its MIME type. The icons's src must map to that so that it can be found at run time.

You can then republish:

atile publish -s hello-tile/

That generates a much more colourful card:

Clicking through will produce the same result as before because we haven't updated the code. That part is up to you!
